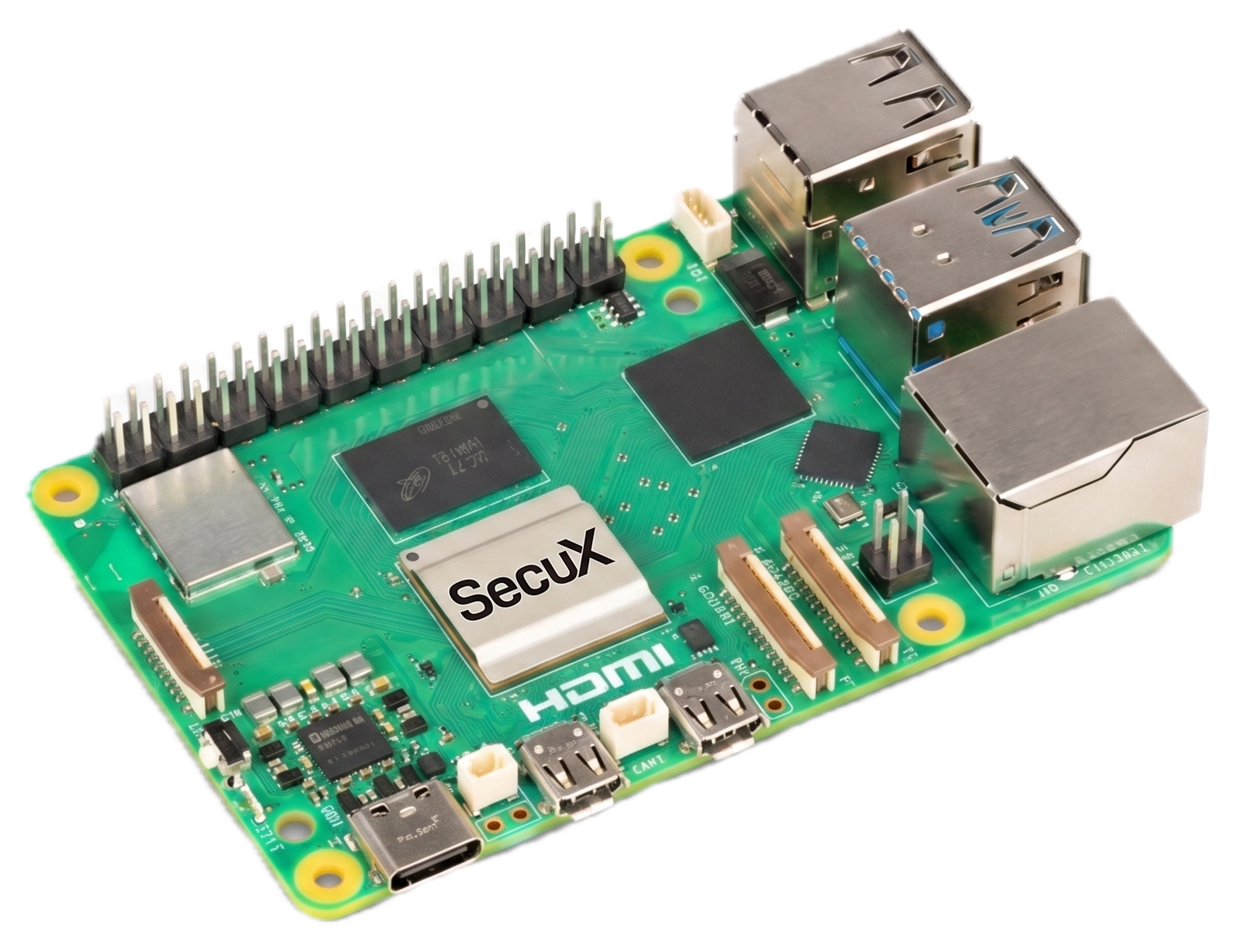

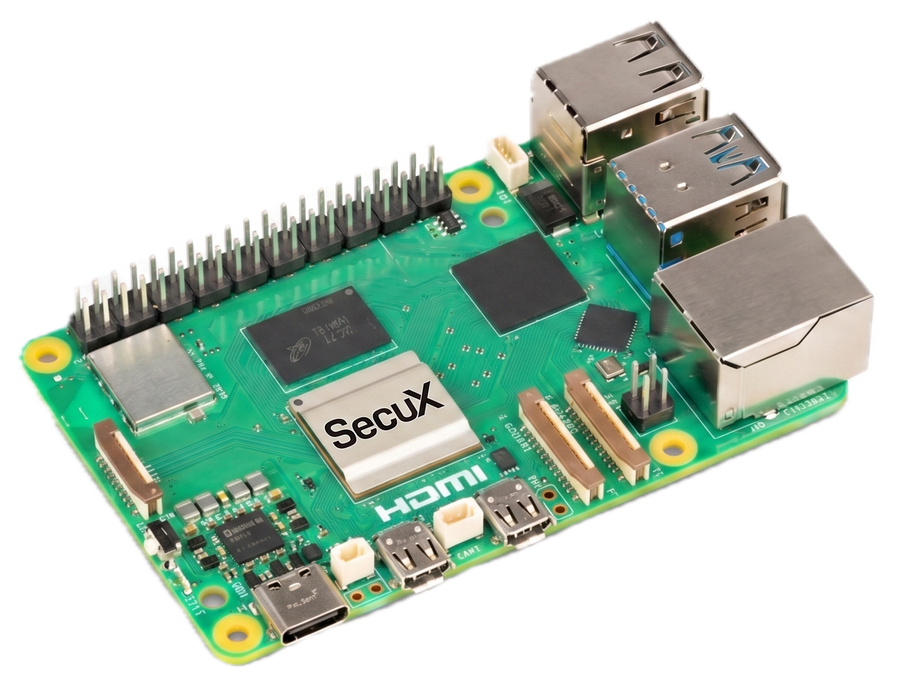

Edge AI SBC powered by the Novatek NT98532MBG chip with a dedicated Deep Learning Accelerator (DLA) and AIISP intelligent image enhancement. Runs YOLOv5 at over 30 FPS while consuming only 2 watts, with full Python/C++ development support and OpenClaw compatibility.
SecuX · Edge AI SBC
Real-time AI at the edge.
Real-time AI at the edge.
4 eTOPs of power. Only 2 watts.
10x more energy efficient than traditional CPU solutions. Parallel processing of 4 video streams simultaneously. OpenClaw ready.
4 eTOPs
Native AI computing power
2W
Ultra-low power consumption
10x
Faster than CPU inference
4
Parallel video streams
Key features
4 eTOPs native AI power
KDP-series NPU delivers up to 10x faster inference than traditional CPU solutions, running YOLOv5 at over 30 FPS.
Ultra-low 2W power
Full AI workloads at only 2 watts. Designed for continuous deployment in power-constrained edge environments.
Dedicated DLA accelerator
0.75 TOPS hardware deep learning accelerator with NUE2 preprocessing for object detection and image classification.
AIISP image enhancement
8M@30FPS high-quality image processing. All AI inference runs locally with no cloud dependency for maximum privacy.
Multi-stream processing
Parallel analysis of 4 video streams simultaneously for multi-camera surveillance and industrial vision applications.
OpenClaw compatible
Experimental support for the OpenClaw AI automation framework with 0.3-second rapid connection for smart local automation.
Use cases
Smart surveillance and security
Industrial defect inspection
Smart traffic analysis
Automated visual inspection systems
Edge AI camera applications
Industrial predictive maintenance
Smart security and local automation
KNEO Open Market app development
Technical specifications
Chip
Novatek NT98532MBG (BGA 231-pin SiP)
CPU
Dual-Core ARM Cortex-A32 with NEON and FPU cache
AI Performance
0.75 TOPS (single-core hardware DLA with NUE2 preprocessing)
Memory
Built-in SiP 4Gb (512MB) DDR3 RAM at 1866Mbps
Video Encoding
Up to 9M@30FPS H.264/H.265
8M@30FPS AV1
Decode Resolution
Up to 4608 x 4608
Sensor Input
Up to 8M@60FPS (Sensor HDR)
30FPS typical
Sensor Interface
Up to 4-channel MIPI CSI-2 / sub-LVDS
Image Enhancement
8M@15FPS (AIISP ON)
8M@30FPS (AIISP OFF)
Storage
SD 3.0 / eMMC 5.1 / SPI up to 160MHz
Network
10M/100M Ethernet MAC and PHY (RJ45)
USB
USB 2.0 Host/Device (1 port)
GPIO Expansion
GPIO, I2C, SPI, PWM, UART, I2S, SDP, DMIC
OS
Linux / RTOS dual-system development environment
Operating Temperature
-20°C to 70°C
TJ_OP: -20°C to 110°C
